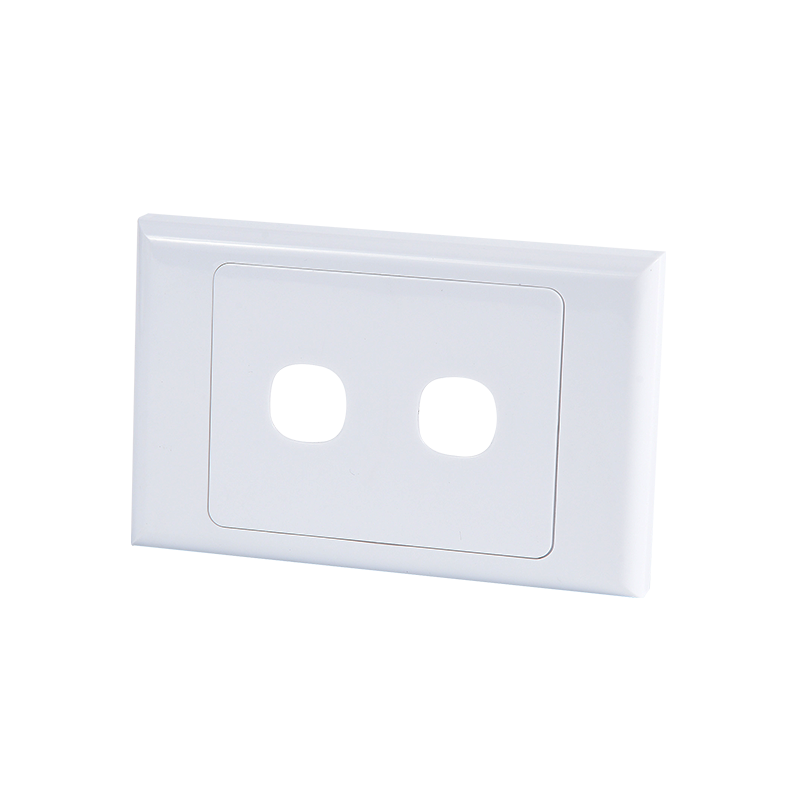

SMT-4304-120-2P Australia Faceplate Double Port

Series description: Wall-mounted faceplate, suitable for all information/telephone modules with Australian-style interface, can be installed with up to 2 connectors, and 2 M3.5/M4 bolts are standard.

1. Embedded face frame, no screws are visible on the surface, easy to install and disassemble.

2. The surface is simple and beautiful.

3. Environmental requirements: meet ROHS standards.

4. Using high-strength PC plastic, anti-collision, impact resistance, not easy to deform.

5. Environmental performance:

6. Temperature: -25～+70℃

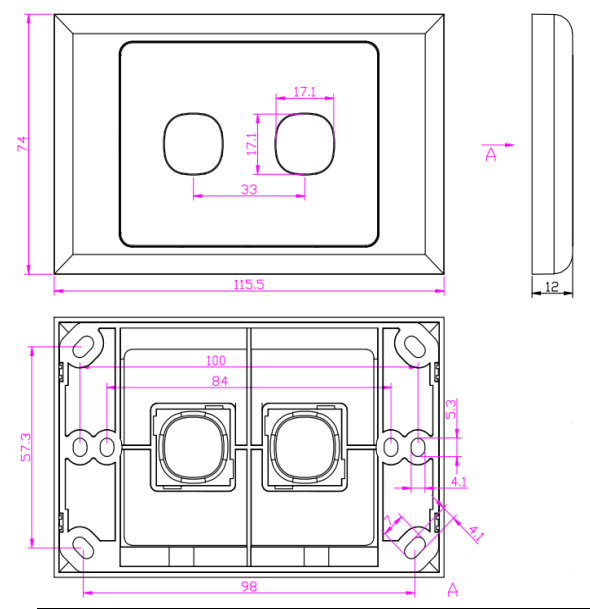

7. Outline drawing and maximum size:

8. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.

Regular packing quantity: 10 boxes per box, 20 per box, 200 per box.

9. Note: Product use mark: customer specified packaging.
