SMT-4307SC-2P 86 Type Flat Faceplate Fit For SC Connector,2 Ports

Series description: The optical fiber adapter panel is a user terminal product that realizes the optical fiber to the desktop solution, and the internal space design is reasonable. It is used in the home or work area to complete the access and port output of the dual-core fiber, which can fully meet the requirements of the bending radius of the fiber, and protect the incoming and outgoing fibers, providing safe protection for the fiber core. Appropriate radius of curvature allows inventory of a small number of redundant fibers to realize FTTD (Fiber to the Desktop) system applications.

1. Embedded face frame, no screws are visible on the surface, easy to install and disassemble.

2. Larger front identification space, convenient for port identification, equipped with detachable nameplate, convenient for port management.

3. Environmental requirements: meet ROHS standards.

4. Using high-quality ABS engineering plastics, anti-collision, impact resistance, not easy to deform.

5. Environmental performance: Temperature: -25～+70℃

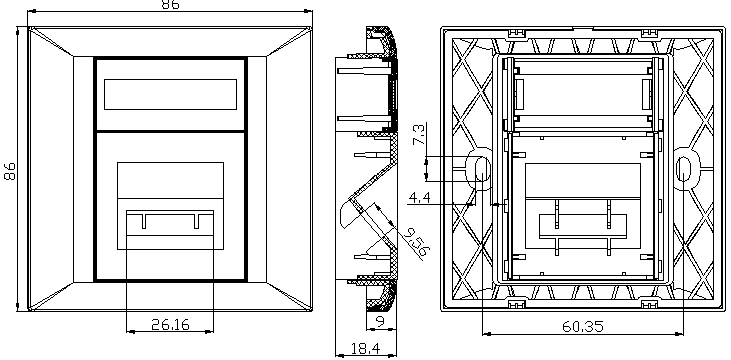

6. Outline drawing and maximum size:

7. Packaging and storage:
The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are put in at the same time. A label indicating the product model and quantity is affixed on the upper left corner of the front of the carton, and then put into the carton middle. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.Regular packing quantity: 10 boxes per box, 20 per box, 200 per box.

8. Notes: Product use mark: customer specified packaging.
