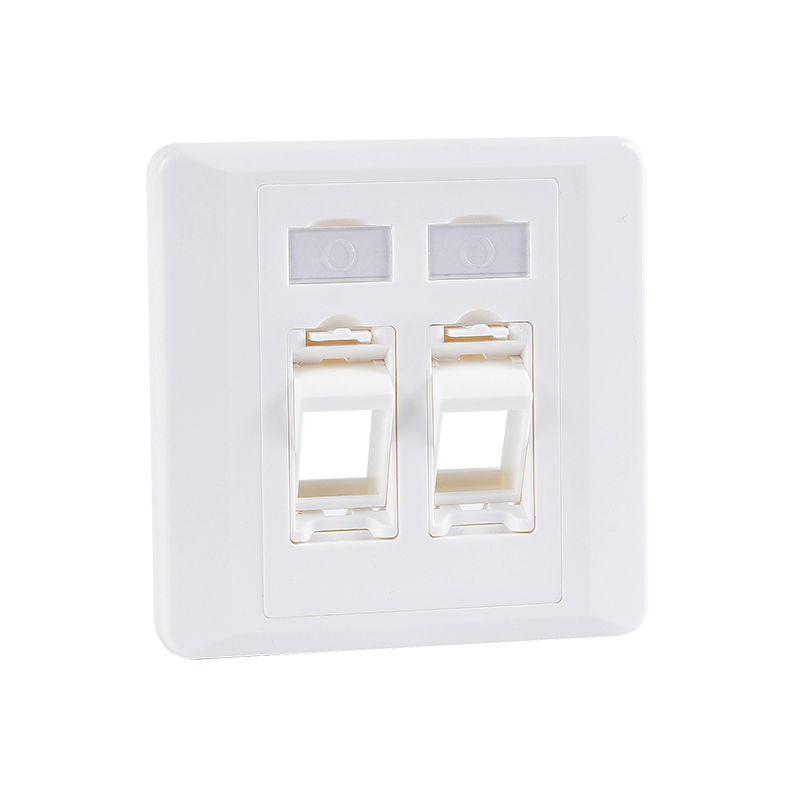

SMT-4323AP-86-2P 86 Type 2 Ports Rotary Faceplate

Series Description: Wall-mounted faceplate, common to all Type 86 exposed/concealed back boxes.Compatible with all AMP interface information/telephone modules.

1. Embedded face frame, no screws are visible on the surface, easy to install and disassemble. The front is equipped with red and blue identification blocks for telephone and data, which is convenient for distinguishing the types of connectors installed.

6. Equipped with spring-type dust-proof door, larger frontal identification space, convenient port identification, equipped with detachable signboard, convenient for port management.

2. Environmental requirements: meet ROHS standards.

3. Using high-quality ABS engineering plastics, it is anti-collision, impact-resistant and not easy to deform.

4. Environmental performance: temperature: -25～+70℃

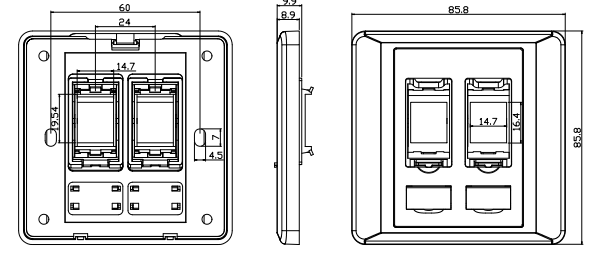

5. Outline drawing and maximum size:

6. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.

Regular packing quantity: 10 boxes per box, 20 per box, 200 per box.

7. Note: Product use mark: customer specified packaging.
