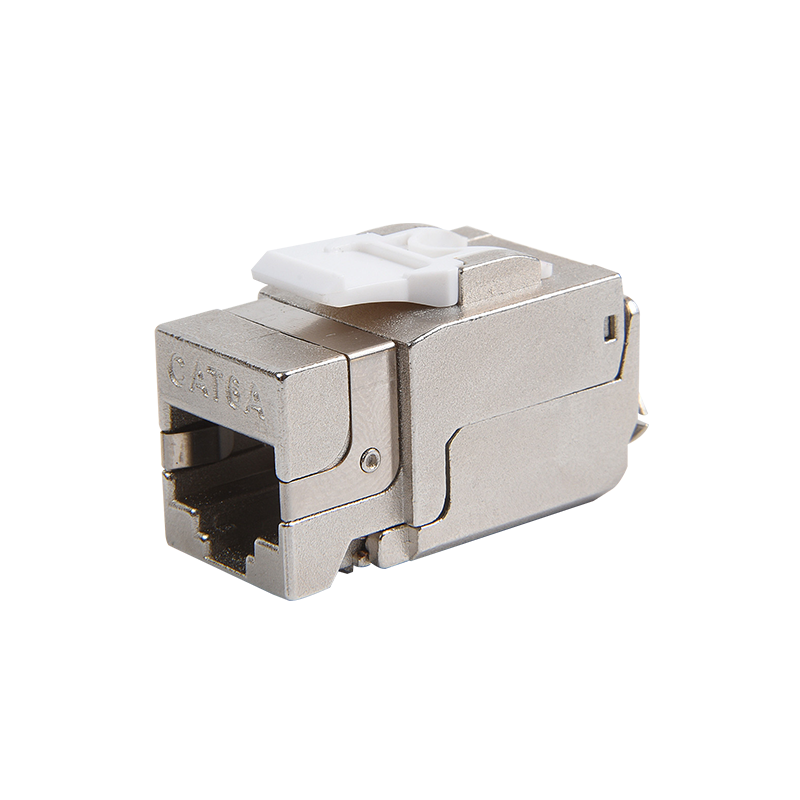

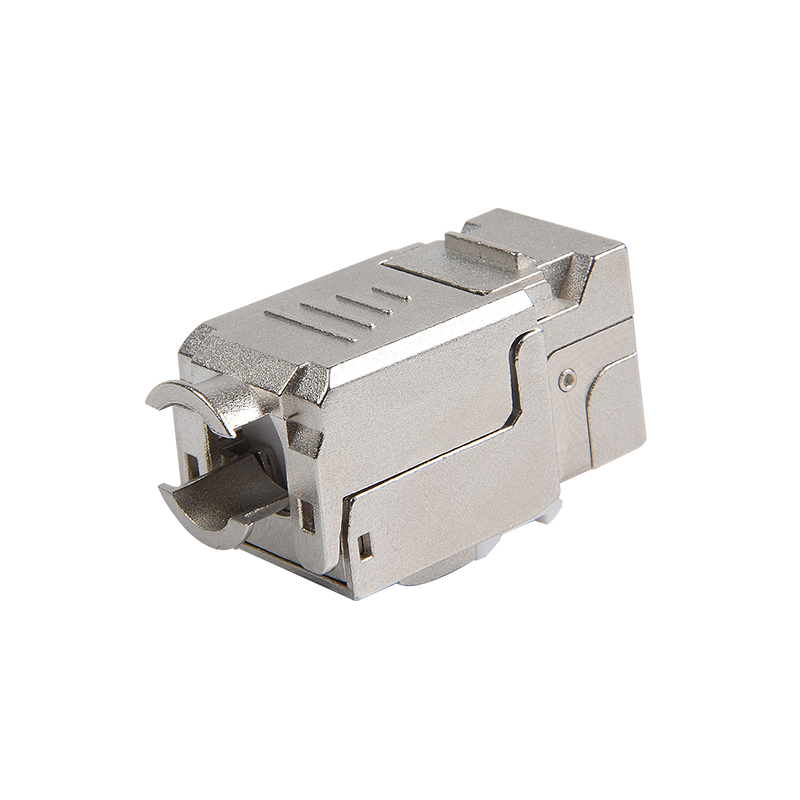

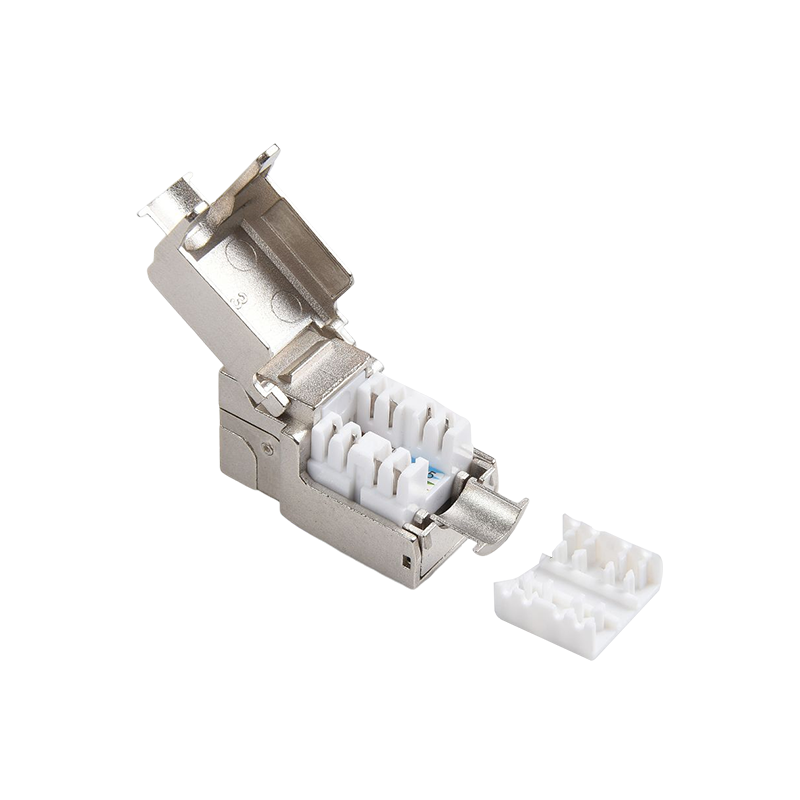

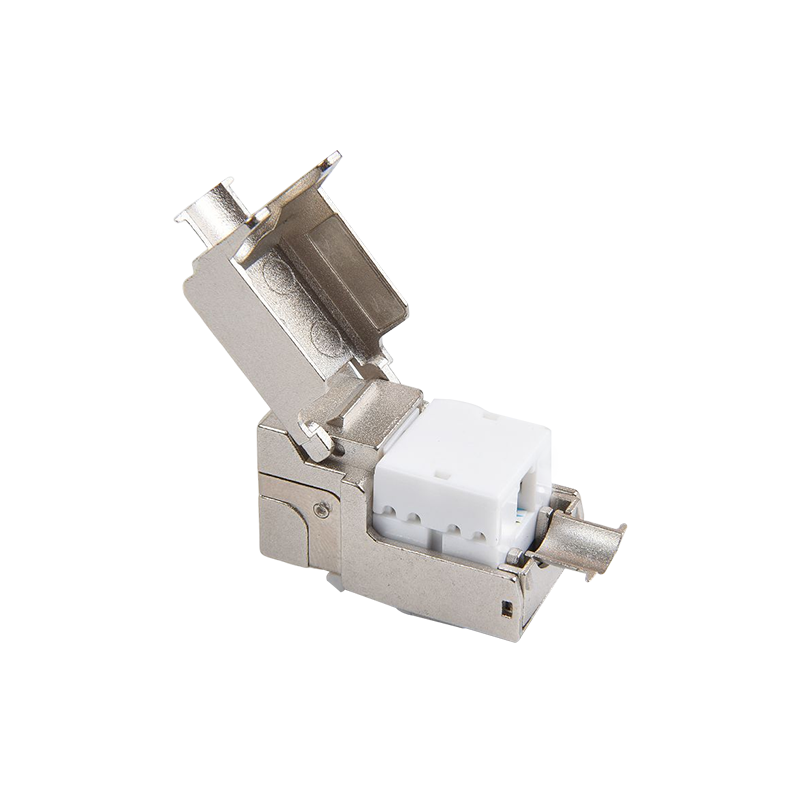

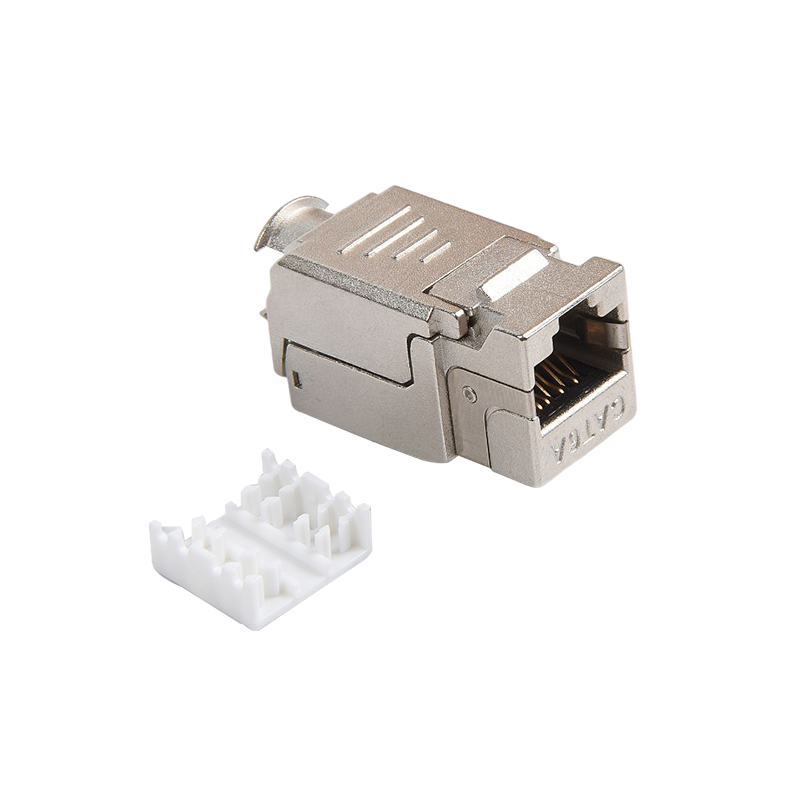

SMT-1048T8C6A-FTP 90 Degree Shielded CAT6A Toolless Keystone Jack

Series description: Meet the category 6A transmission standards, in line with T568A and T568B line sequence, suitable for communication socket connection between equipment and work area. The shape is compact, and the universal wire sequence label is clearly marked on the module card wire, which is convenient for accurate and fast termination.

1. It has backward compatibility and can be backward compatible with CAT6/CAT5e and lower categories of systems

2. Embedded design, the module can be installed on the distribution frame to form a modular distribution frame

3. Connection method: RJ45 jack with jumper, IDC terminated with horizontal wiring. The contact pin contact adopts high and low dislocation technology, which effectively reduces the near-end crosstalk value

4. Environmental requirements: meet ROHS standards.

5. Material introduction: This module product is used to connect the horizontal wiring and work area wiring on the same floor of the building, and is mainly used for wiring equipment and terminal equipment or adapter conversion connection. Product mating and mating cables are copper-axle twisted pair cables and copper-axle jumpers.

6. Inter-matching relationship: use with connectors of the same standard series

7. Applicable standard: General specification: YD/T 926.1-2009

Sub-standard: YD/T 926.3-2009

8. Technical parameters:

Electrical Characteristics:

A. Frequency range: 1～500MHz

B. Working voltage: 125 V

C. Withstand voltage: DC1000V (AC750V) 1min without breakdown and arcing phenomenon

E. Insulation resistance: initial value ≥ 200MΩ

After constant damp heat test ≥100MΩ

Mechanical properties:

A. Insertion force and pull-out force: the insertion force is not more than 20N, and the pull-out force is not less than 20N

B. Effect of connector connection device: 50N 60±5s

C. IDC terminal is clamped to 23~26AWG twisted pair

Durability:

A. The number of times the plug and socket are inserted: 750 times

B. Number of wire terminations: 250 times

9. Material and surface treatment:

A. Metal material:

Gold Needle: Phosphor Bronze Gold Plated

IDC card wire terminal: Phosphor bronze nickel plated

B. Non-metallic materials:

Plastic: PC polycarbonate

C. Thickness of gold-plated layer: 3~50U gold-plated

D. PCB material: FR4

10. Environmental performance: Temperature: -25～+70℃ Humidity: ≤85% (temperature 85℃±3℃)

Salt spray test:

A. The pH value of the salt solution before atomization is between 6.5 and 7.2 (35±2℃);

B. The salt solution is prepared with sodium chloride (chemically pure, analytically pure) and distilled or deionized water.

Its concentration is (5±0.1)% (mass percentage);

C. Continuous atomization is adopted, and the recommended duration is 48h;

D. When atomizing, it is necessary to prevent impurities such as oil and dust and the temperature and humidity of the jet air from affecting the work.

conditions for the space.

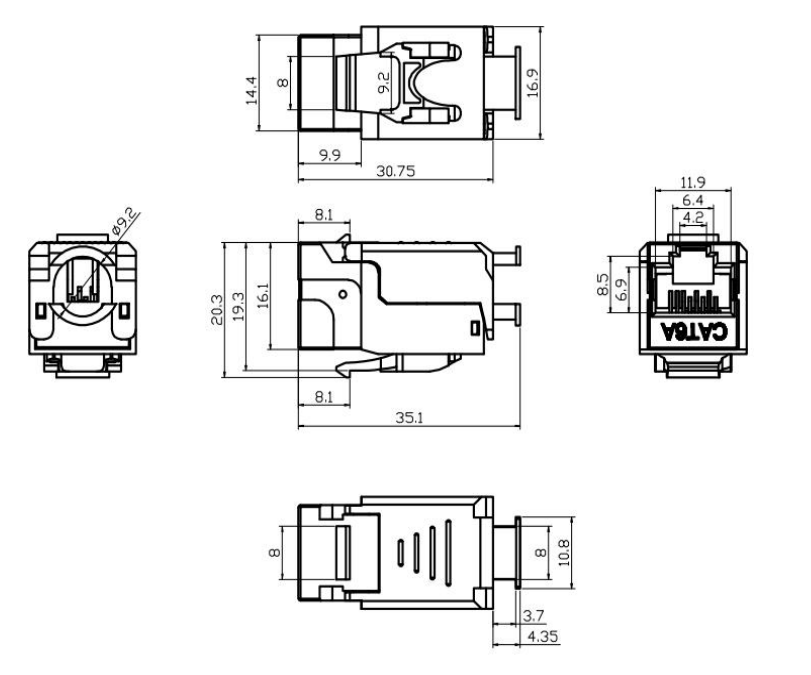

11. Outline drawing and maximum size:

12. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.

Regular packing quantity: 10 boxes per carton, 50 pcs per box, 500 pcs per carton.

13. Note: product use mark: customer specified packaging.
