Wholesale SMT-4312-45-2P 2 Ports 45°Faceplate 45*45mm Suppliers, Company

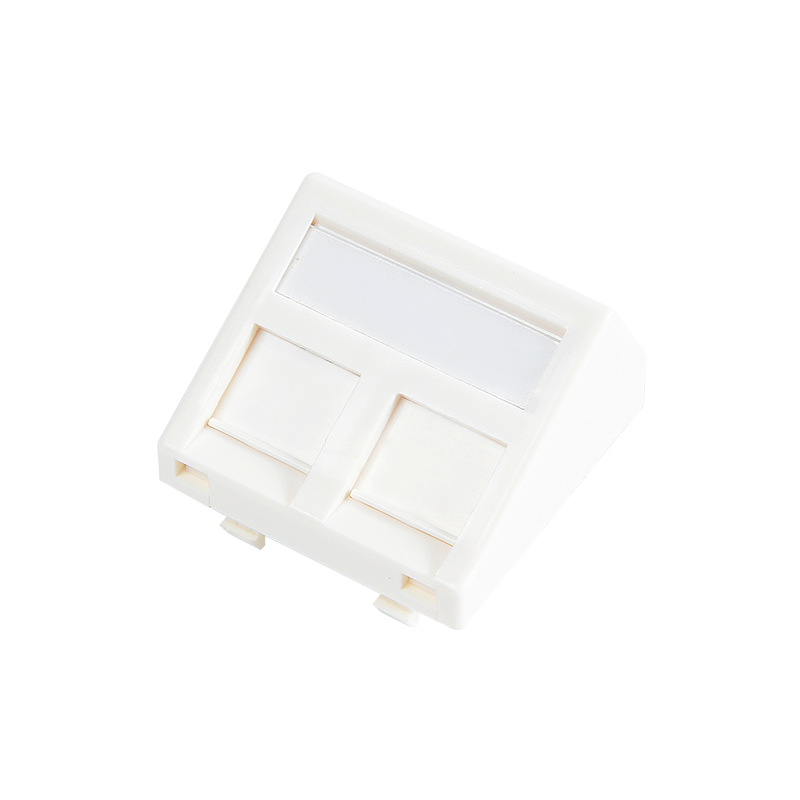

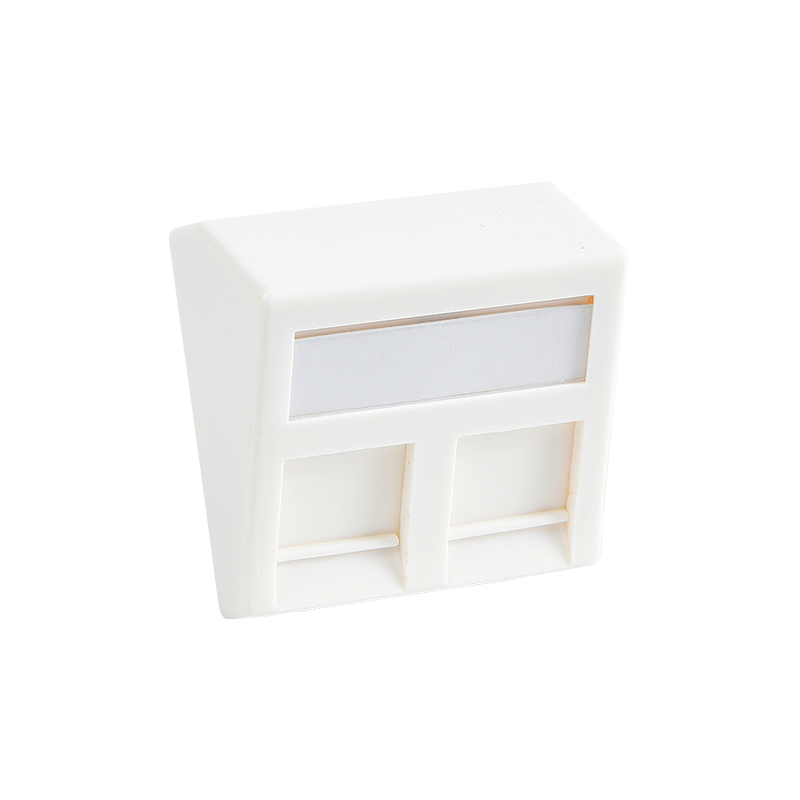

SMT-4312-45-2P 2 Ports 45°Faceplate 45*45mm

Series description: Wall-mounted faceplate, universal for 80/86 type exposed/concealed back boxes.Compatible with all information/telephone modules of the Amp interface, up to 2 connectors can be installed, and 2 M3.5/M4 bolts are standard.

1. Embedded face frame, no screws are visible on the surface, easy to install and disassemble.

2. Equipped with a spring-type dust-proof door, with a logo window on the front, which is convenient for port identification, and equipped with a detachable logo plate, which is convenient for port management.

3. Environmental requirements: meet ROHS standards.

4. Using high-quality ABS engineering plastics, anti-collision, impact resistance, not easy to deform.

5. Environmental performance: temperature: -25～+70℃

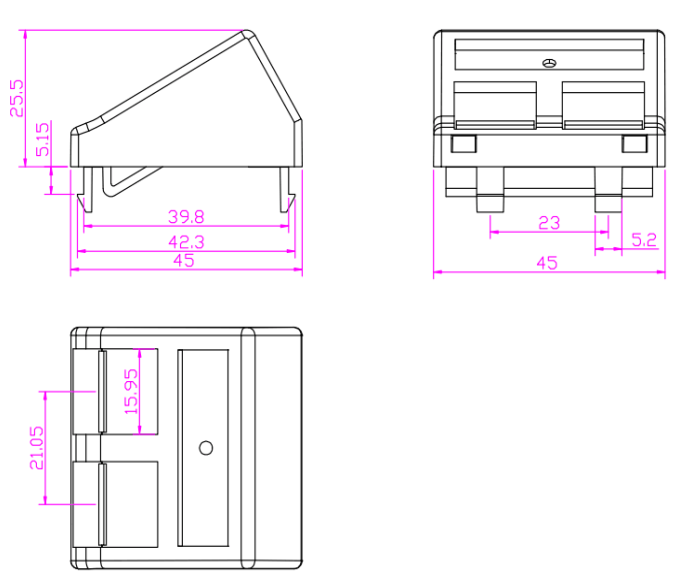

6. Outline drawing and maximum size:

7. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are placed at the same time, and a label indicating the product model and quantity is pasted on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.

Regular packing quantity: 10 boxes per box, 20 per box, 200 per box.

8. Note: Product use mark: customer specified packaging.
